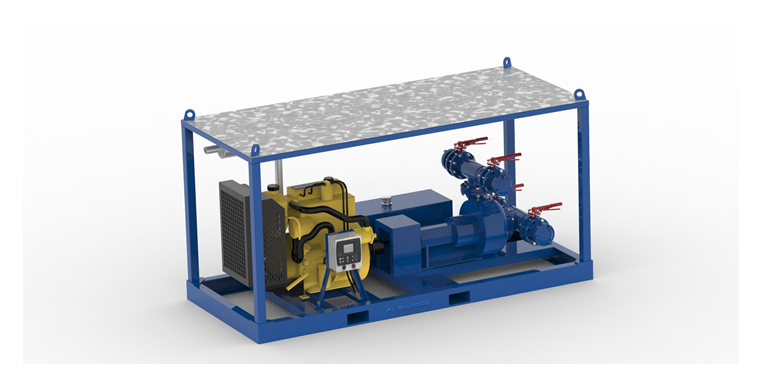

Transfer Pump Skid Mounted:

Mission Magnum has been the most popular centrifugal pump in the drilling industry because of its proven reliability, durability, and economical structure.

The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in Magnachrome™, hard iron, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).


Description:

The 6 X 5 X 14 Mission, centrifugal pump is furnished with an impeller, tungsten carbide mechanical seal, coupling, OSHA type coupling guard, 50 Horsepower explosion proof electric motor and had explosion proof push button start/stop motor starter station with breather and drain.

The pump is mounted on a oil field skid with all applicable surfaces grit blasted to white metal, primed with an organic zinc primer, painted with an intermediate coat of epoxy polyamide primer and finished with a top coat of high solids, high build alkyd enamel.

Motor Specifications:

50 HP, 460 volt, 60 Hz, 1,800 rpm’s or 380 volts, 50 Hz, 1,500 rpm’s, 3 phase , Explosion Proof Motors, Class I, Division 1, Group D, Hazardous Locations. Nominal Motor Voltage must be specified at time of order. An Explosion Proof start/stop push button motor starter station with breather and drain is provided.

Dimensions:

89.0” Long X 34.0” Wide X 45.5” High

(2,261 mm X 864 mm X 1,156 mm)

Typical Applications:

• Barite, ferric oxide, and mineral oil
• Base drilling mud
• Viscous Fluid
• Dirty Water
• Cement
• Mine de-watering
• Lime slurries



Features / Benefits:

• Versatile stuffing box
• One piece casing
• Casing gasket receded for protection
• Back vanes reduce collection of solids at stuffing box
• Long-life, no-adjustment mechanical seal available for near zero leakage
• Replaceable shaft sleeve
• Lip seals for maximum bearing protection (Labyrinth seals optional)
• Duplex angular contact bearings
• Thicker, stronger concentric casings
• Full pipe diameter entrance for minimum turbulence and maximum efficiency
• Single row roller bearings for increased bearing life
• Easy accessible front access drain
• Reduced high bearing loads

Specifications:

• Sizes from 3x2x13 to 10x8x14
• Flow rates from a few gallons per minute up to 2,600 GPM
• Head pressure up to 550 feet
• Best utilized for applications requiring up to 200 HP
