Hico Energy provides cutting boxes to meet customer requirements. The boxes have a gross capacity of 9.3 Tons with a net capacity of 8 Tons of drilling waste. The boxes will be provided with covers and sealing
System for environmental regulations and with certified pad eyes, lifting slings and lifting certificates for lifting purposes. Details Below are the complete of the proposed cutting boxes.

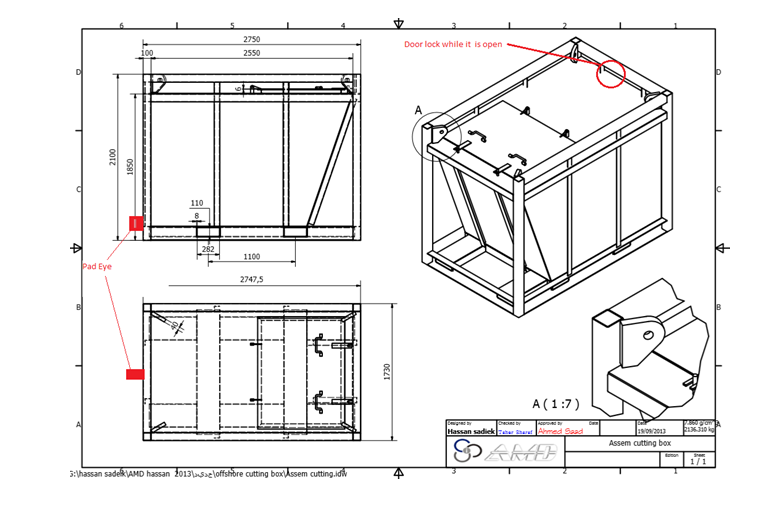

Cutting Box

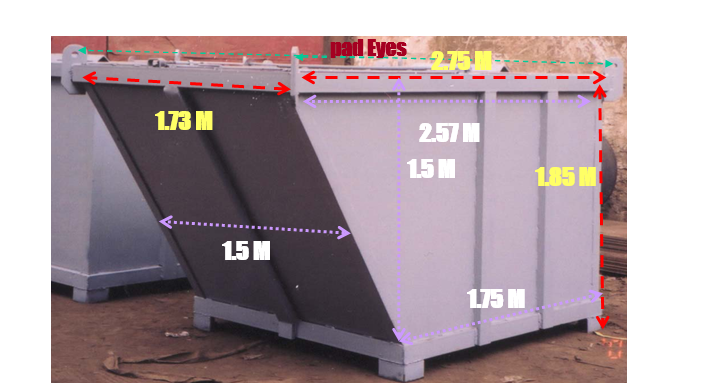

Specification | |
| Outer Dimensions | |
| Length | 2.75 M |
| Width | 1.73 M |
| Height | 1.85 M |
| Inner Dimensions | |
| Length | 2.57 M |
| Width | 1.5 M |
| Height | 1.5 M |
| Weight | |
| Tare weight | 1300 Kg |
| Working Load Limit (WLL) | 8700 Kg |
Volume Total volume is 5.78 M3 15% for safety = 0.867 M3 | |
Volume |
4.91 M3 |
